• Eddy Current Sensor
- Eddy-Current Sensor are non-contact devices capable of high-resolution measurement of the position and
change of position of any conductive target.

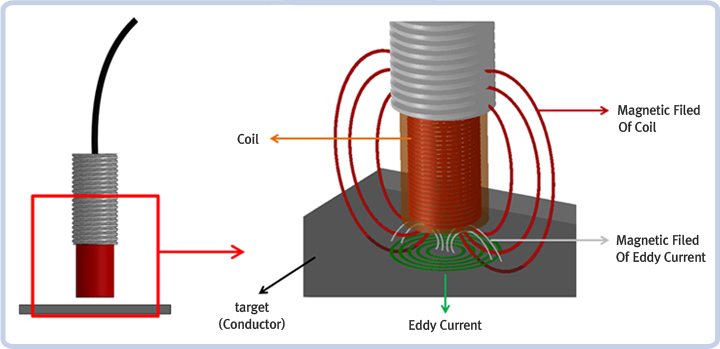

- The Eddy current creates an alternating magnetic field in the target material when high-frequency current
flows through the coil close to the conductors, and the interaction of the magnetic field is dependent on
the distance between the probe and the target.
- As the distance changes, the electronics sense the change in the field interaction and produce a voltage
output which is proportional to the change in distance between the probe and target.
- Therefore, they are particularly suitable when distance of several tens millimeter is measrued in
environments.
|
|

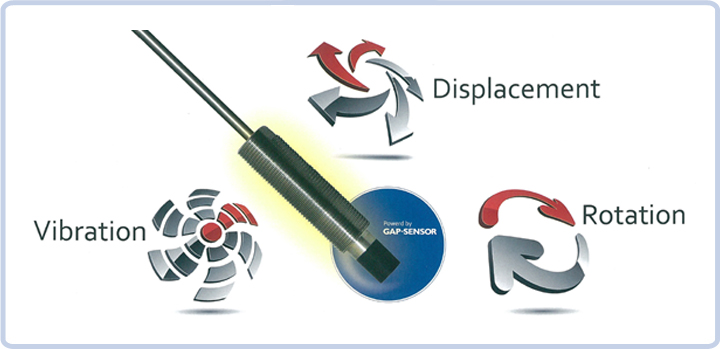

• Application Area
- Measurement of Cylinder Displacement
- Measurement Vibration of Magnetic Bearing System
- Measurement Vibration of Rotating Machinery
|
|
 |
|
|
